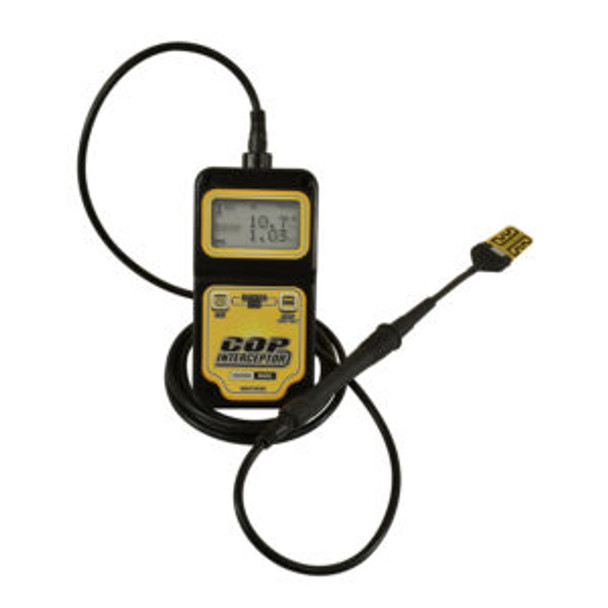

Waekon 76564 Cop Interceptor

The COP Interceptor measures, displays and saves each coil-on-plug’s secondary ignition data in real-time for detailed ignition analysis. View trend data for visual verification of an intermittent misfire that may not set codes.

• Simple to operate — easier than an oscilloscope.
• Works on multiple styles of COP ignition systems.
• 9″ probe plus 2-1/2″ bendable arm.

Features & Benefits

• Easy two button operation — Simple to operate while providing advanced ignition data
• Misfire counter and indicator — Catch intermittent problems that don’t set a Diagnostic Trouble Code (DTC)
• No COP removal required — Save time and test COP ignition under true operating conditions
• Auto-set gain calibration — Calibrates itself to provide the most accurate data for multiple styles of COP ignition systems
• Voltage Snapshot — Tap mode button to lock reading in any mode
• Real-Time kV and mS — Meaures secondary circuits breakdown voltage and arc/burn duration time individually as they happen

Specifications

• Breakdown Voltage Measurement Range: +/- 30kV
• Arc Duration Measurement Range: 0.3 – 5.0 mS
• Resolution: 0.1kV and 0.01 MS
• Multi-Strike Ignition: First V event, Last mS events are displayed
• Misfire Detection: Functional from 240-4000 RPM
• Voltage Supply: 9V Battery (8-10 VDC)

Kit Contents

• COP Interceptor
• 9” Probe plus 2-1/2” bendable arm
• High sensitivity receiver pad
• Low sensitivity receiver pad
• 9 volt battery
• Soft zipper case
